Some examples of Data Centre designs in which we have been involved:

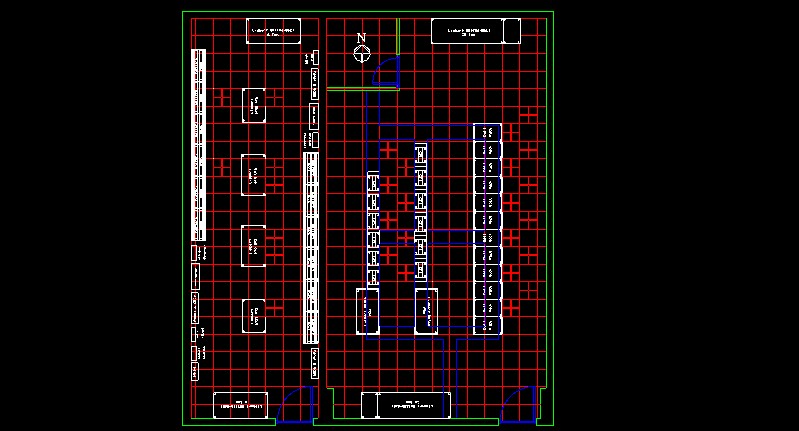

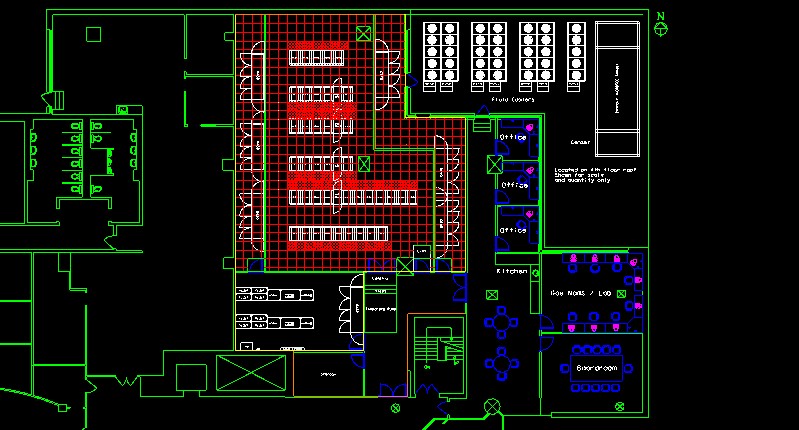

Floor Plan - Mainframe Data Centre - Manufacturing

Floor Plan - Mainframe Data Centre - Telecommunications

Floor Plan - Minicomputer Data Centre - Electronic Gaming

Help Desk VLT install

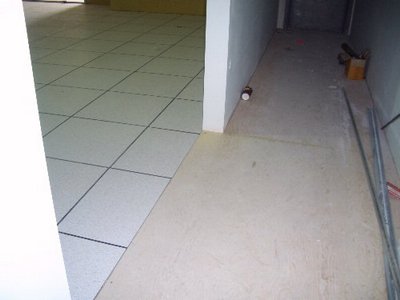

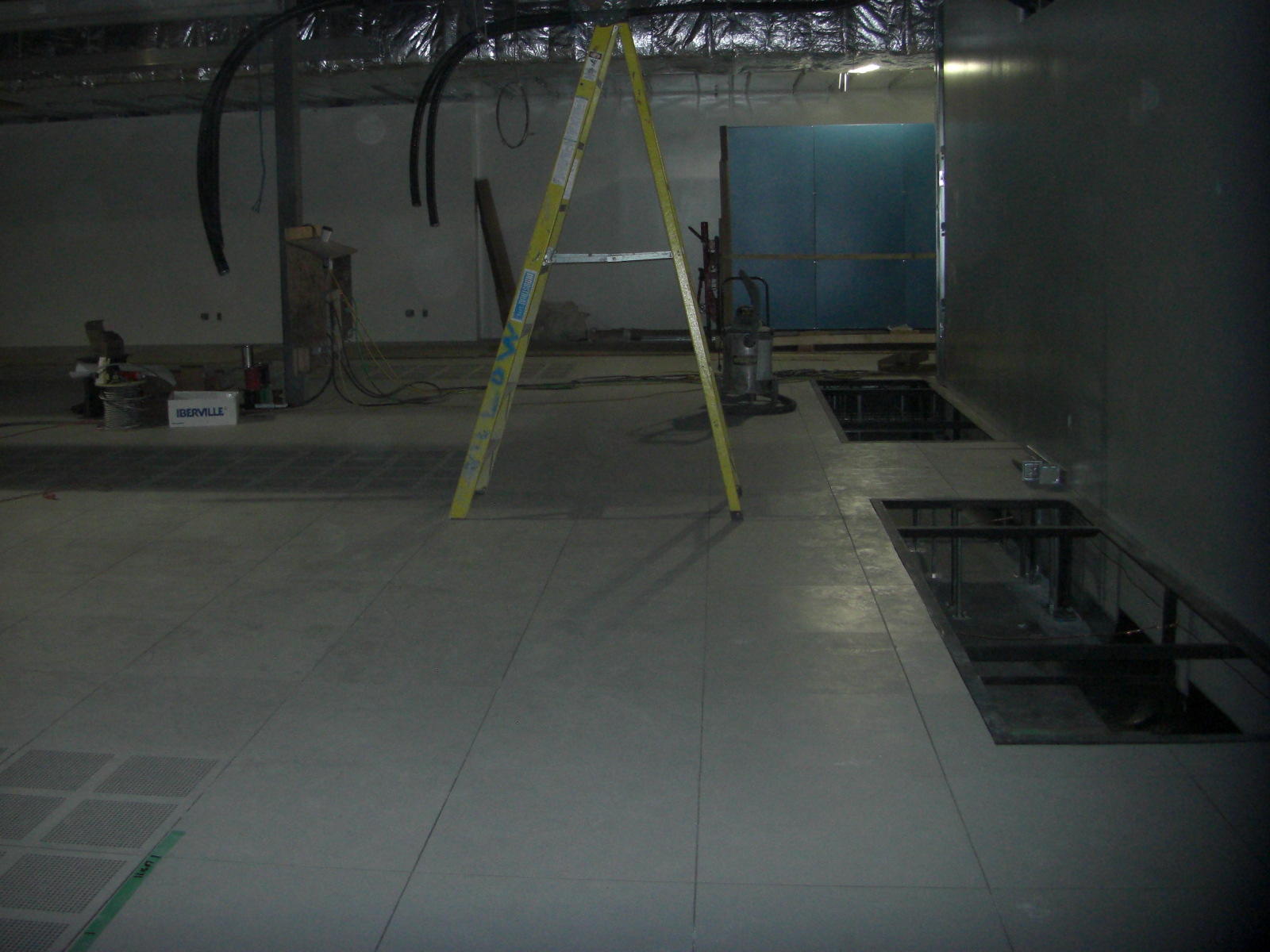

Help Desk floor and carpet install

Mainframe and Server Data Centre - Electronic Gaming

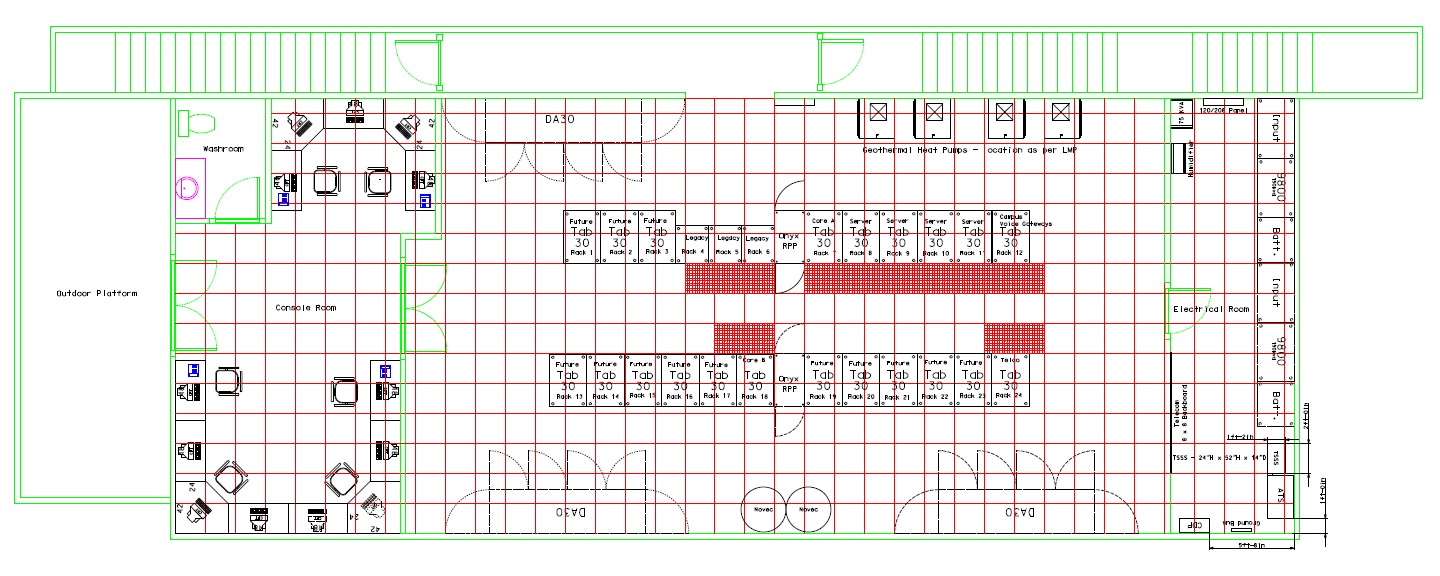

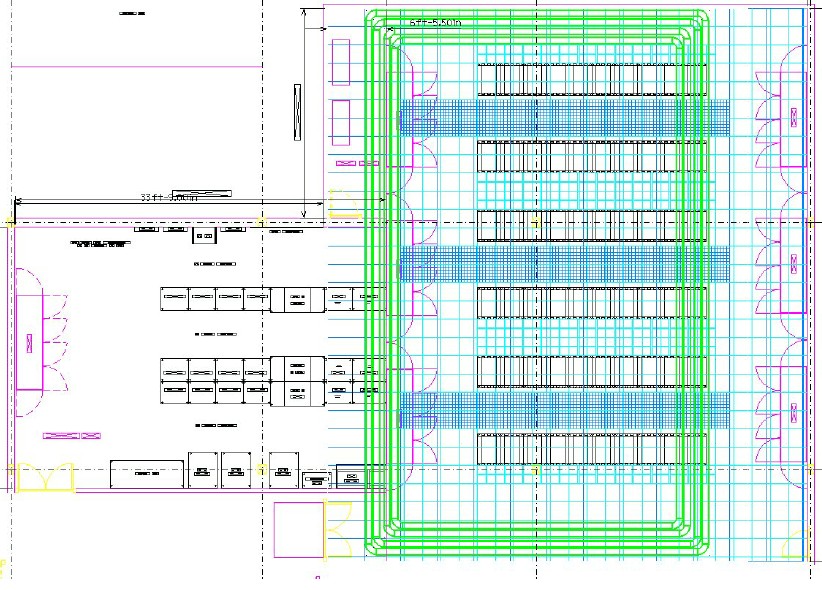

Floor Plan

Console Room demolition

Completed Console Room

Server Data Centre construction

Completed Data Centre

Server Data Centre - Banking

Primary Site

Floor Plan

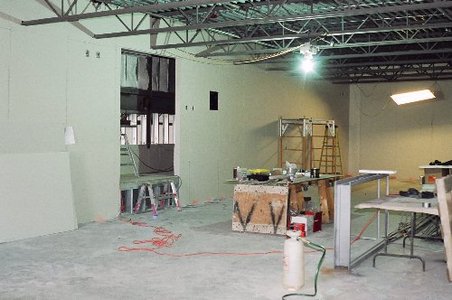

Demolition 1

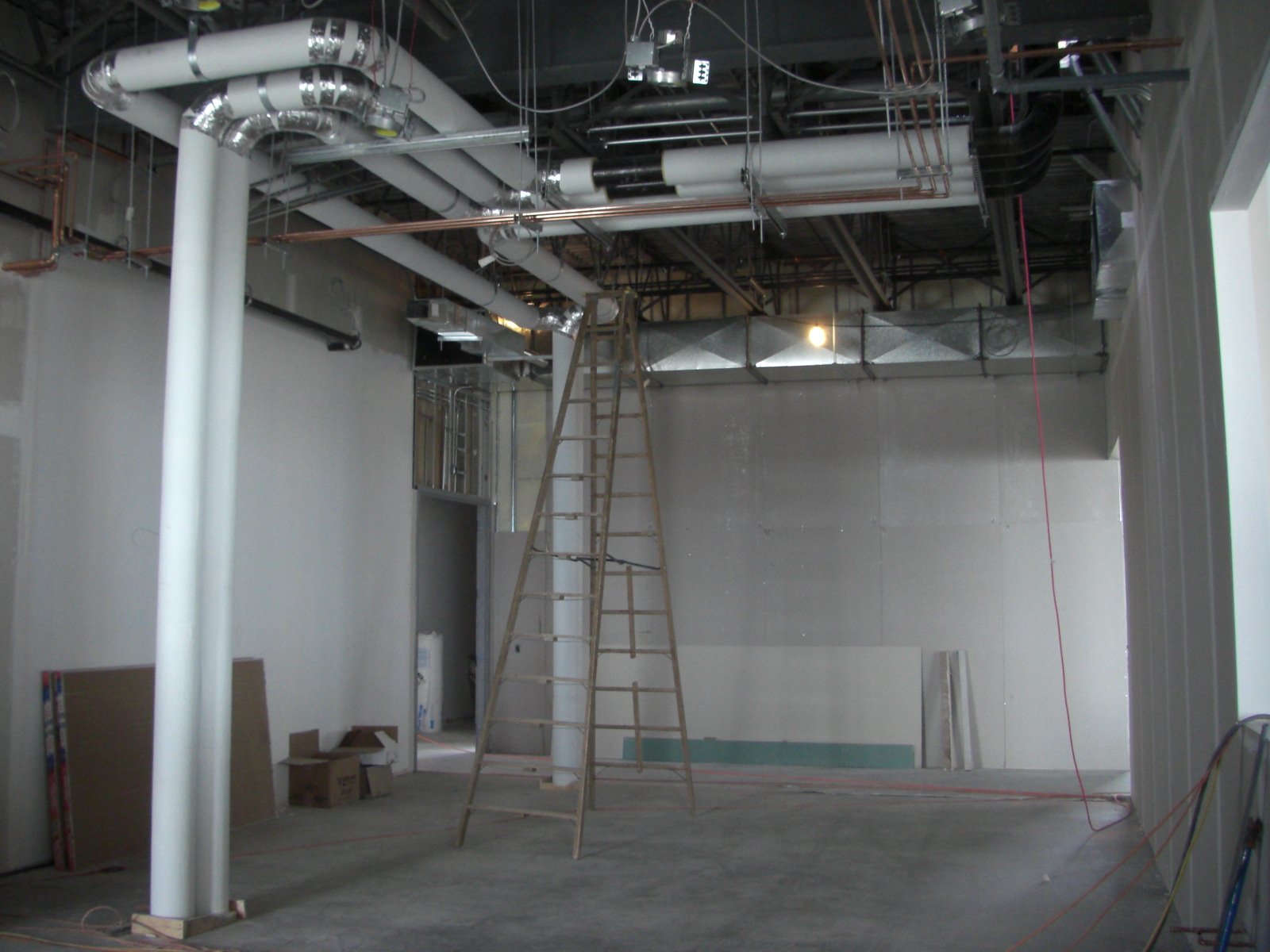

Demolition 2

Drywall delivery

CRAC unit delivery

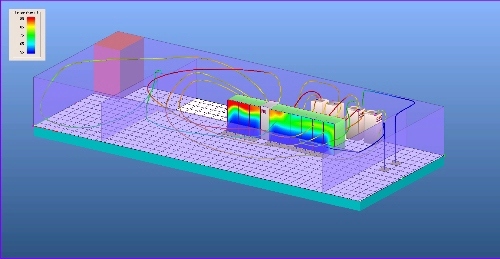

CFD Model as built -incorrect Design, too little cooling

CFD Model - corrected design, additional air flow, racks reorganized

Server Room - Banking

Backup Site

Floor Plan

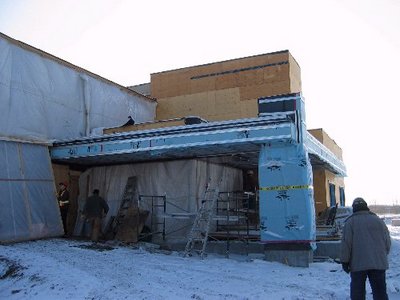

Building construction

Dropped slab sloped for floor drains and raised floor

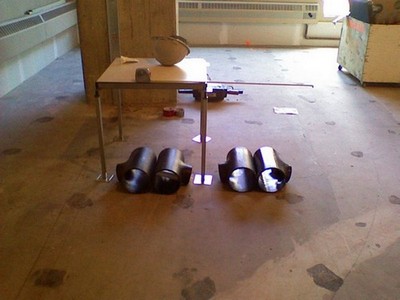

Novec piping rough-in

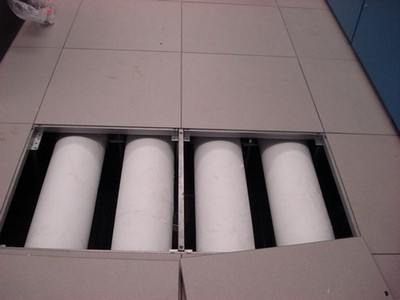

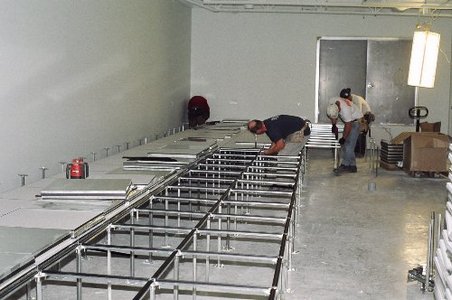

Raised Floor installation

Drop slab with raised floor meets building floor

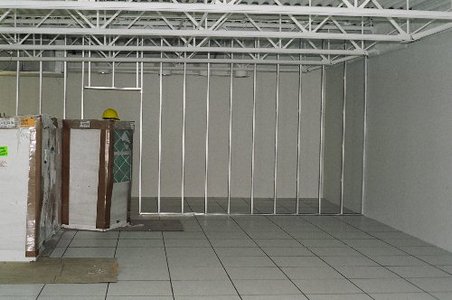

Console Room wall installation

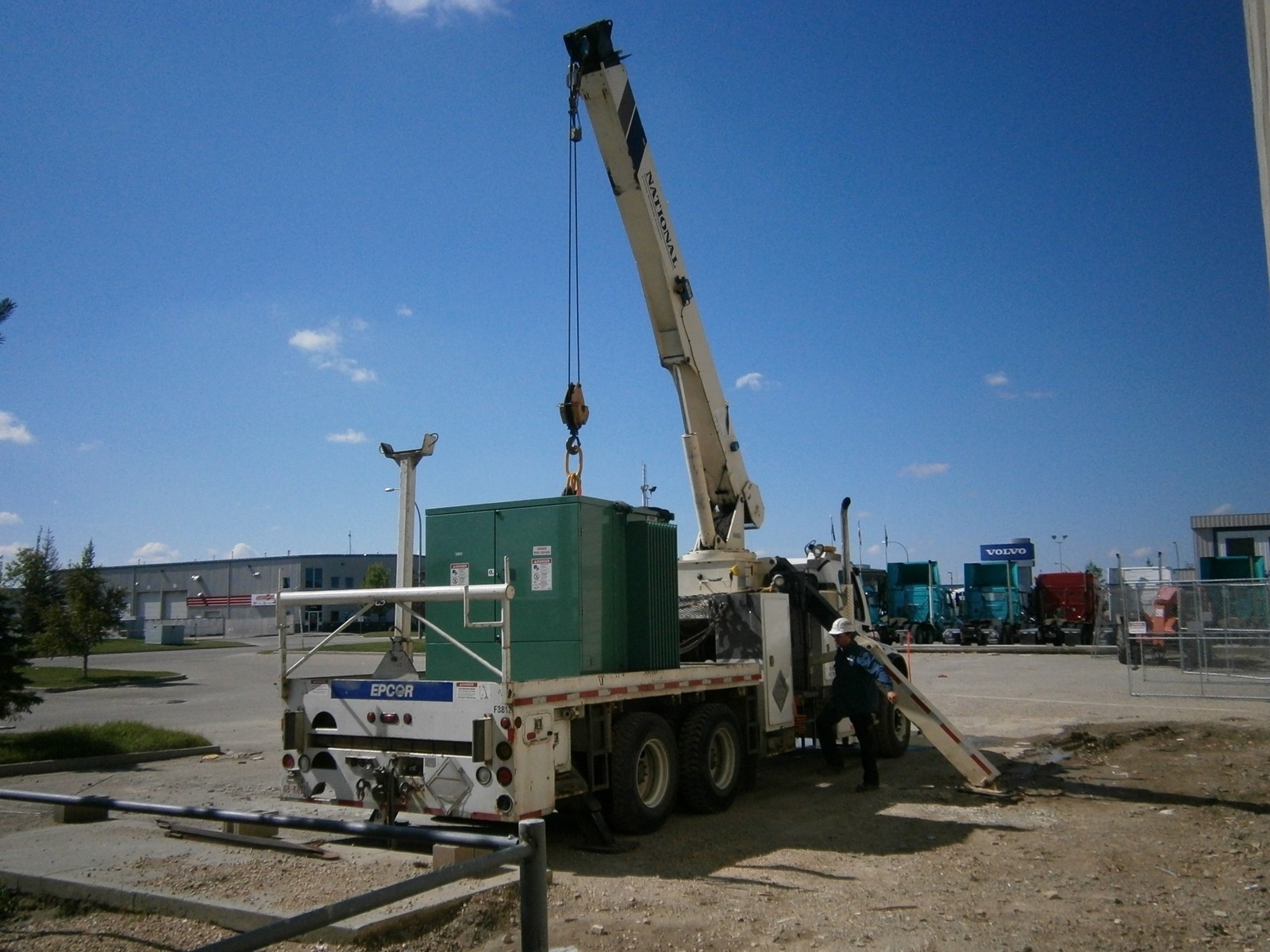

Geothermal Heat Pump delivery, Electrical Room wall construction

CFD Model with heat pumps only - proof positive that Heat Pumps alone will not cool the room

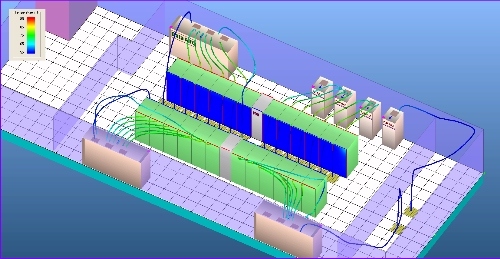

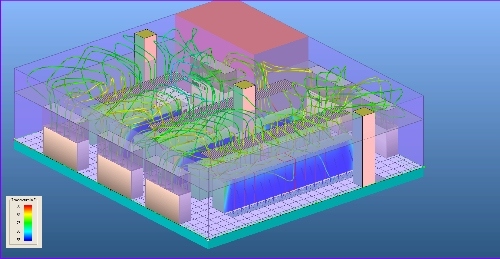

CFD Model - our design for total capacity

Server Data Centre - Software Development and Support


Floor Plan

CFD Model


Floor Plan

CFD Model

Server Data Centre - Oil and Gas

Floor Plan

CFD Model

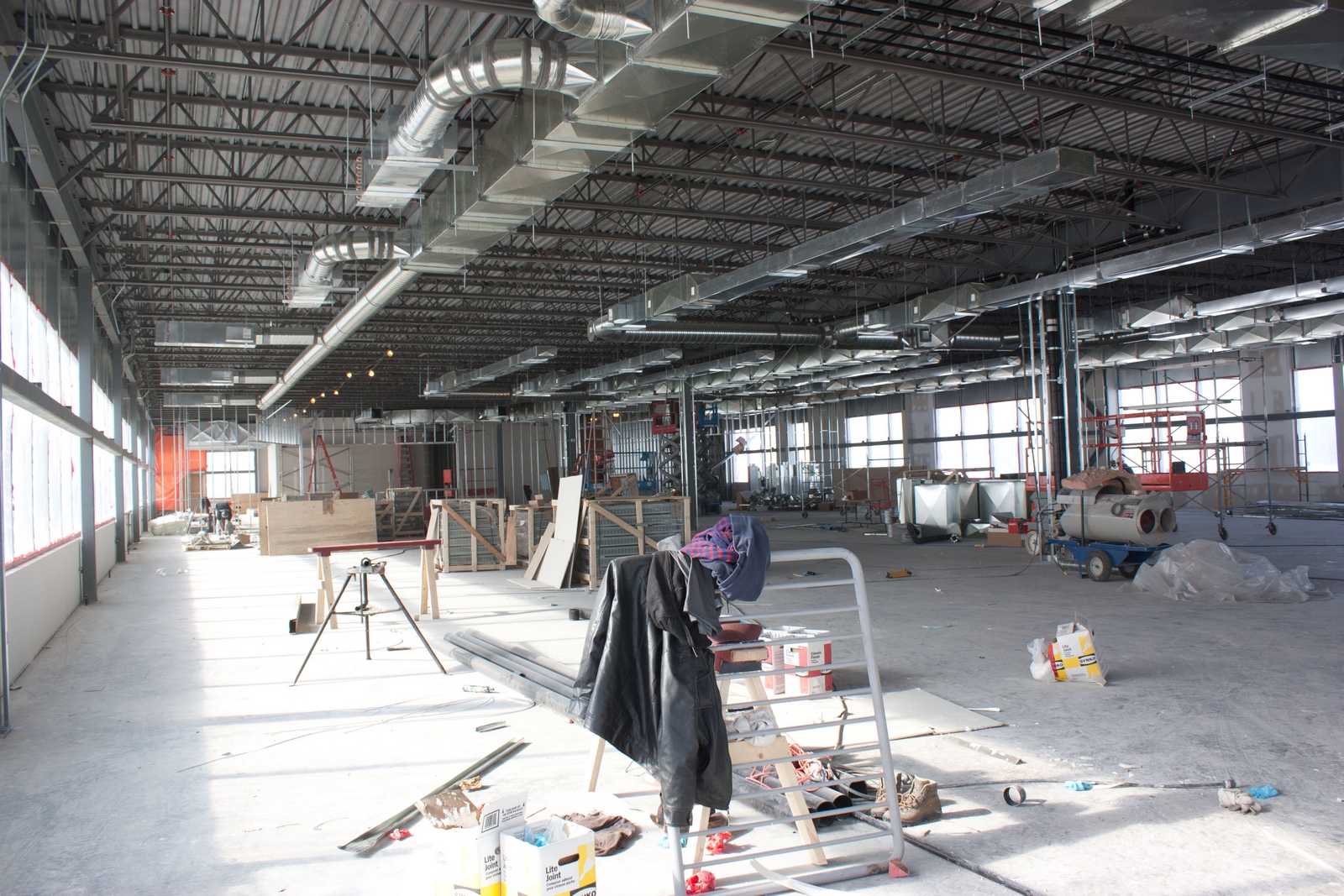

Demolition 1

Demolition 2

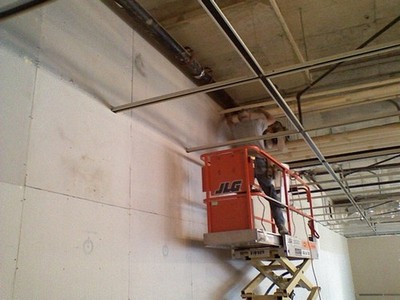

Perimeter drywall installed, comfort air and sprinkler removal

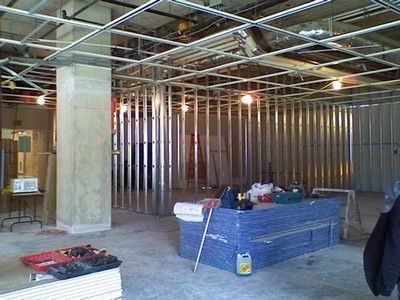

Interior wall installation

Drywall completion - slab to slab

Glycol/water loop sanity check

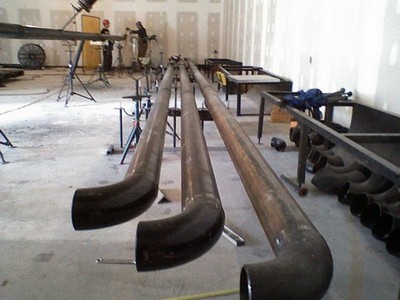

The pipe fitters and the welder create a work of art

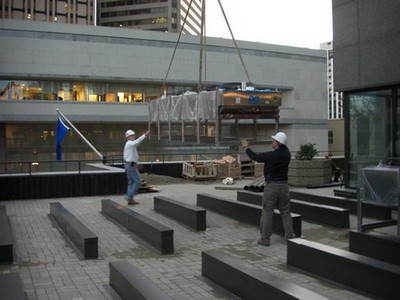

Patio deck removal

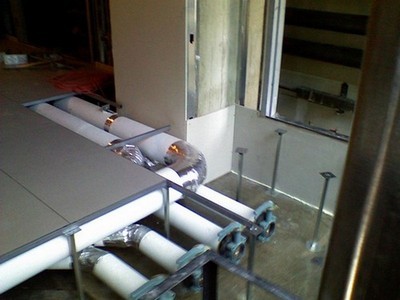

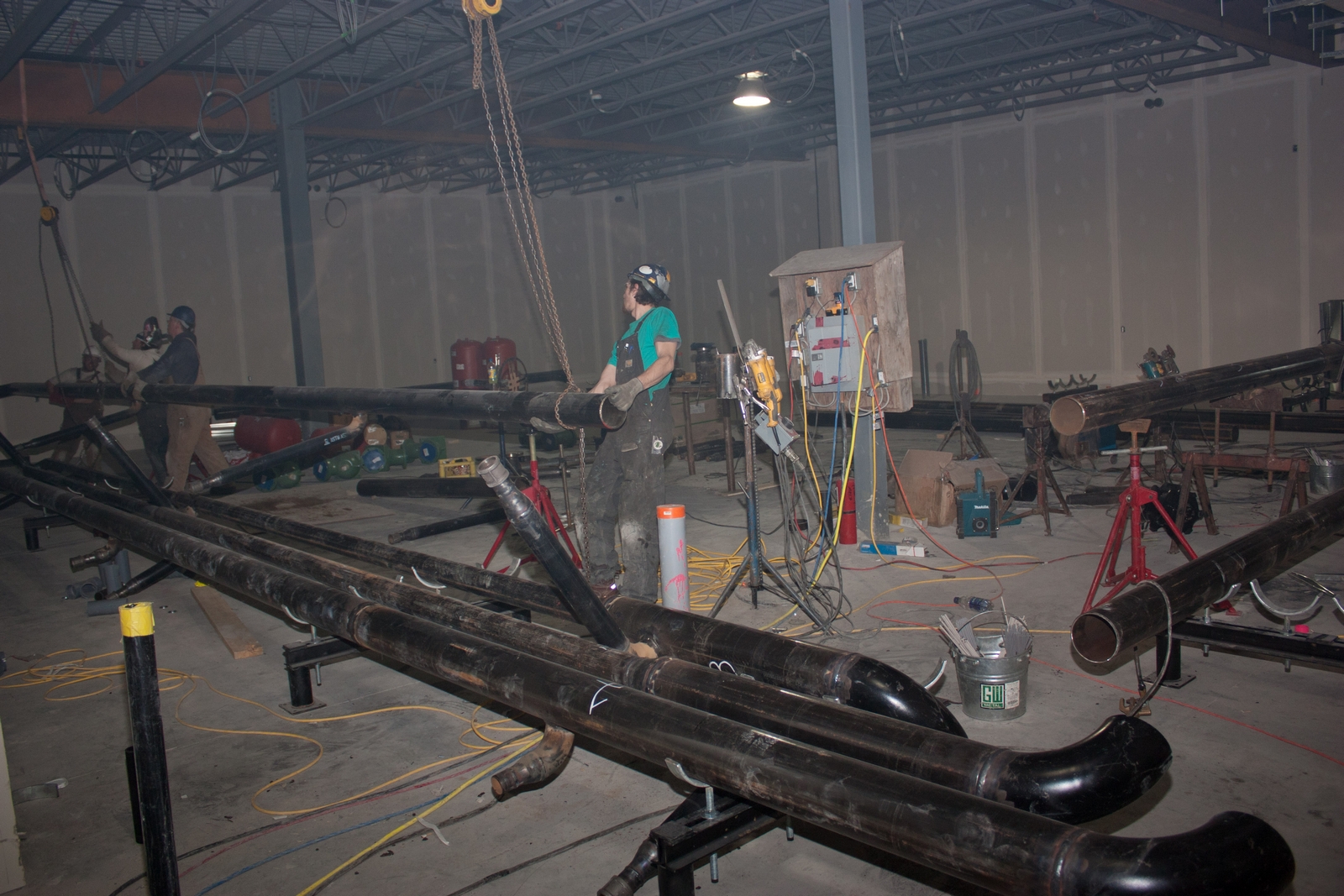

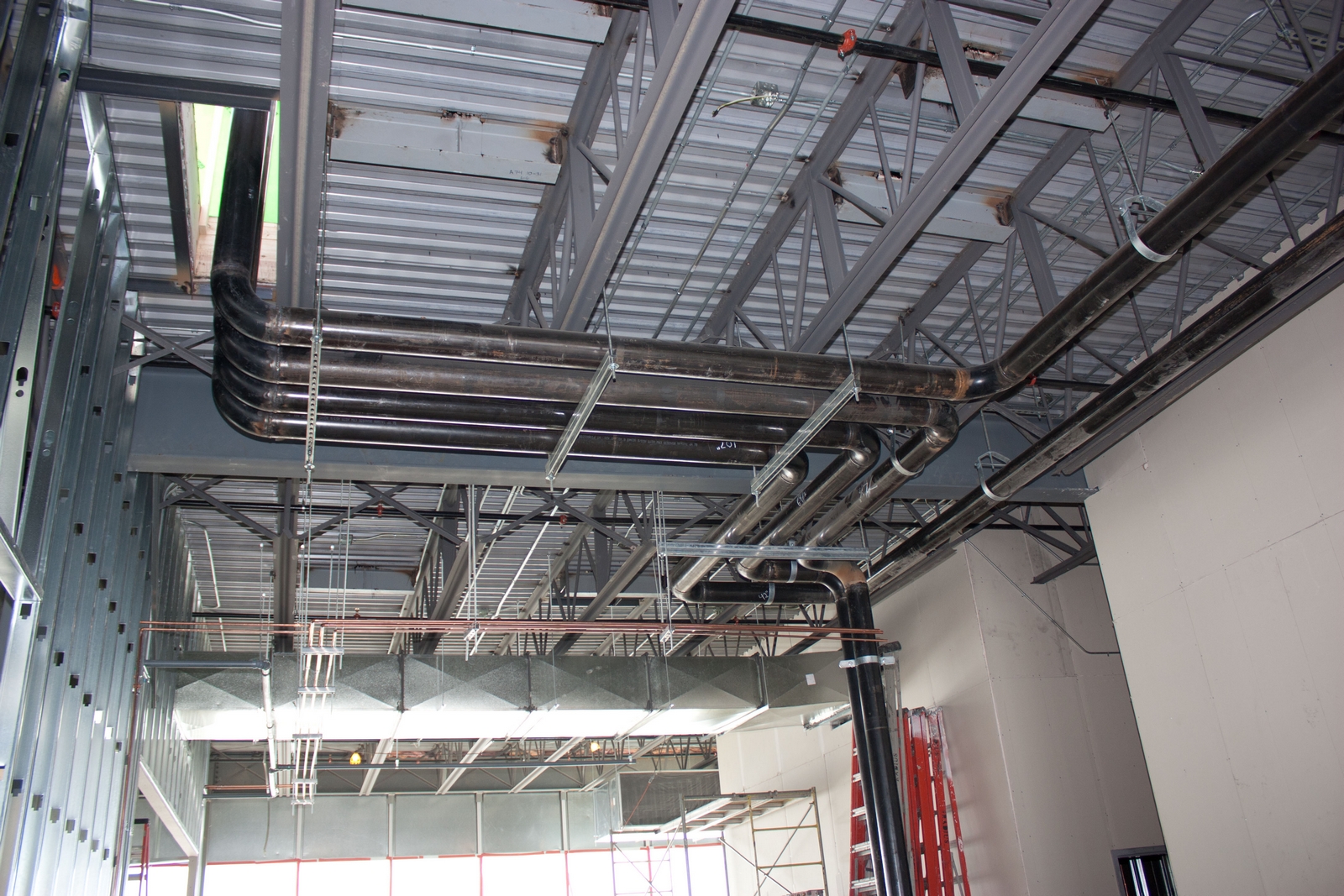

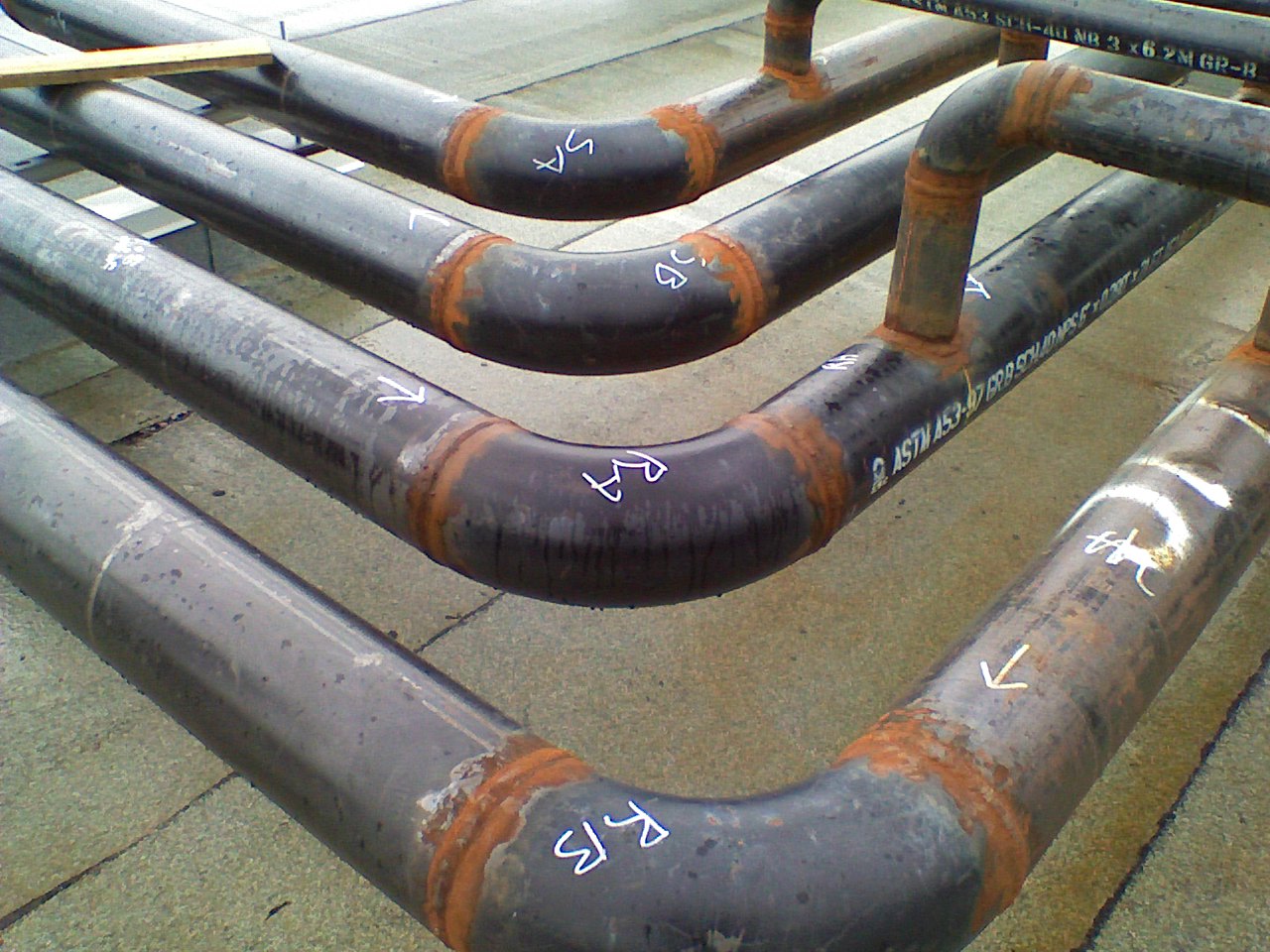

The cooling loops take shape

Fan Farm roof sleeper construction

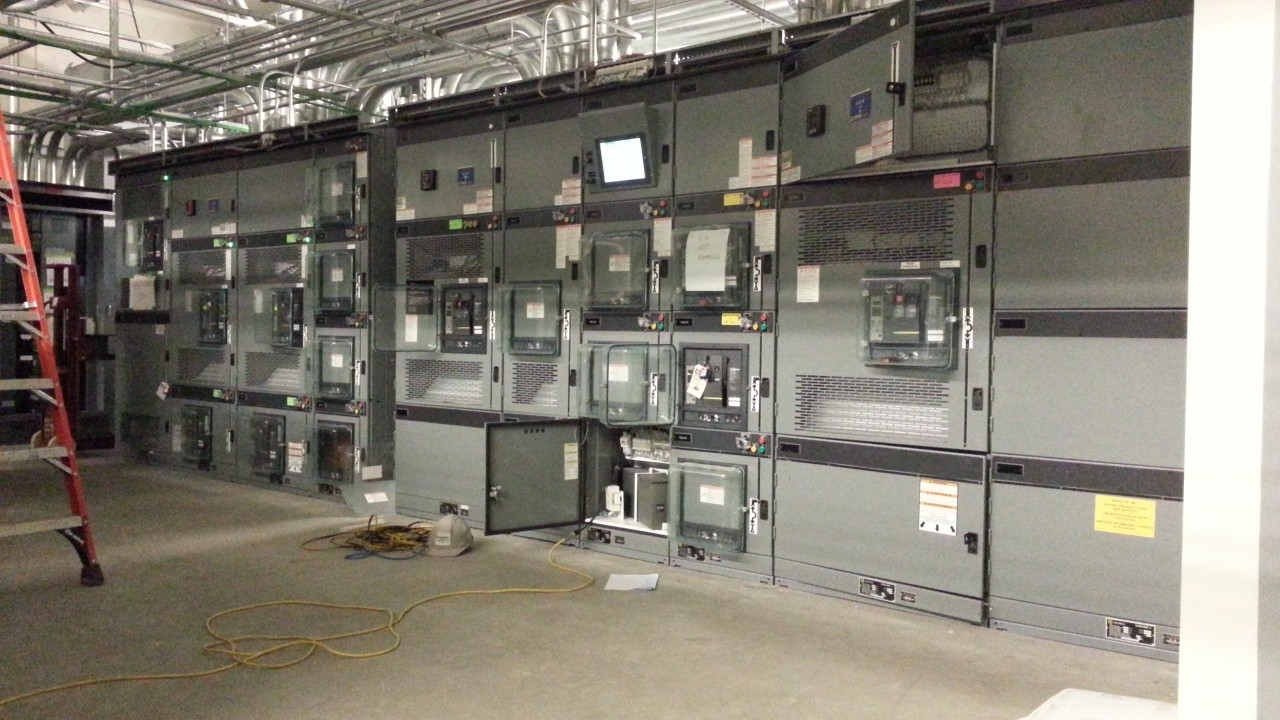

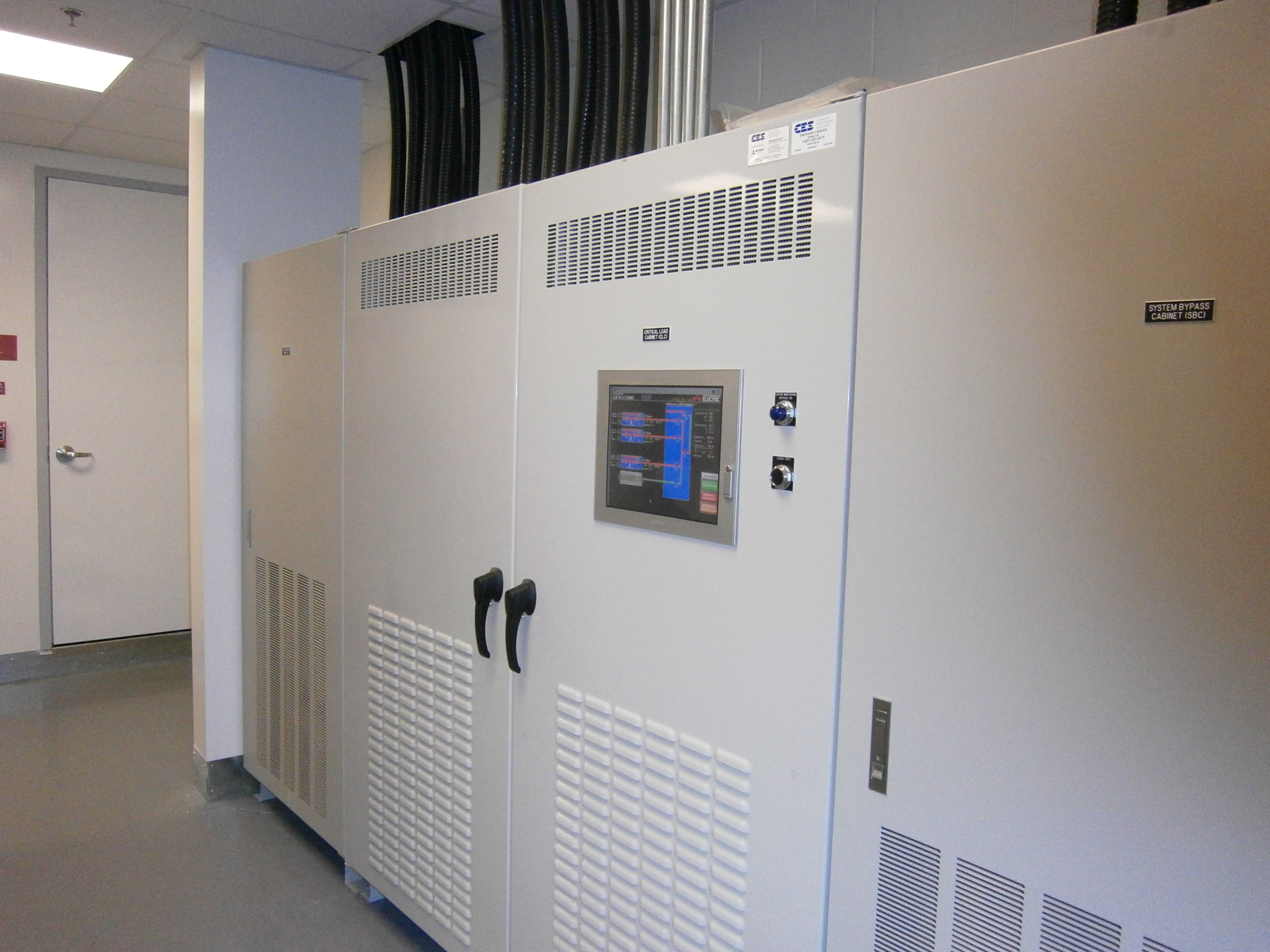

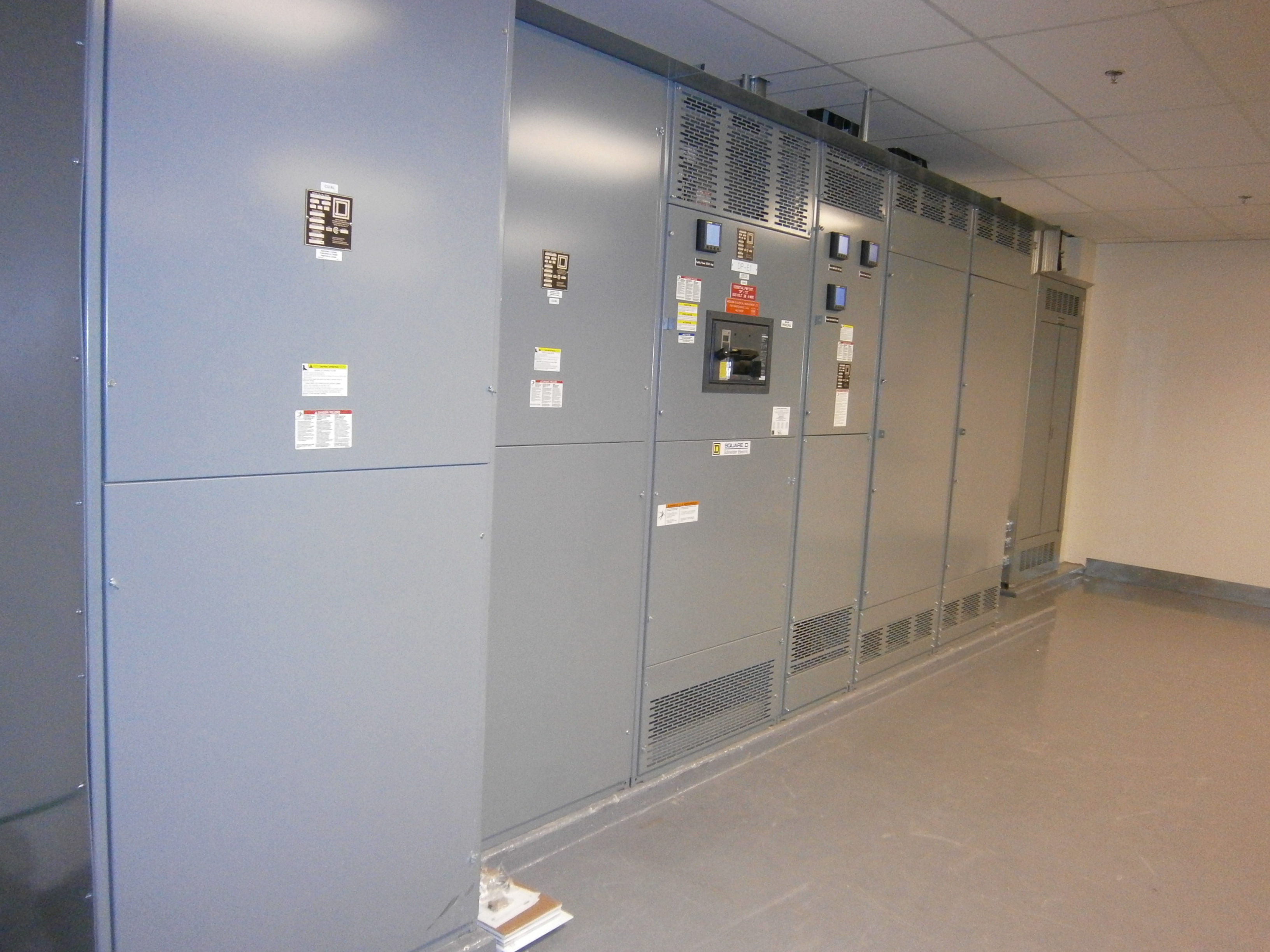

UPS installation in Electrical Room

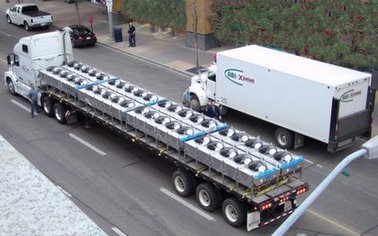

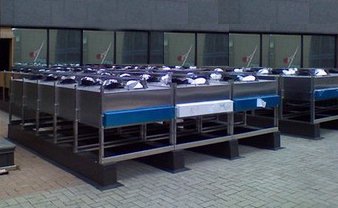

Fluid Cooler delivery

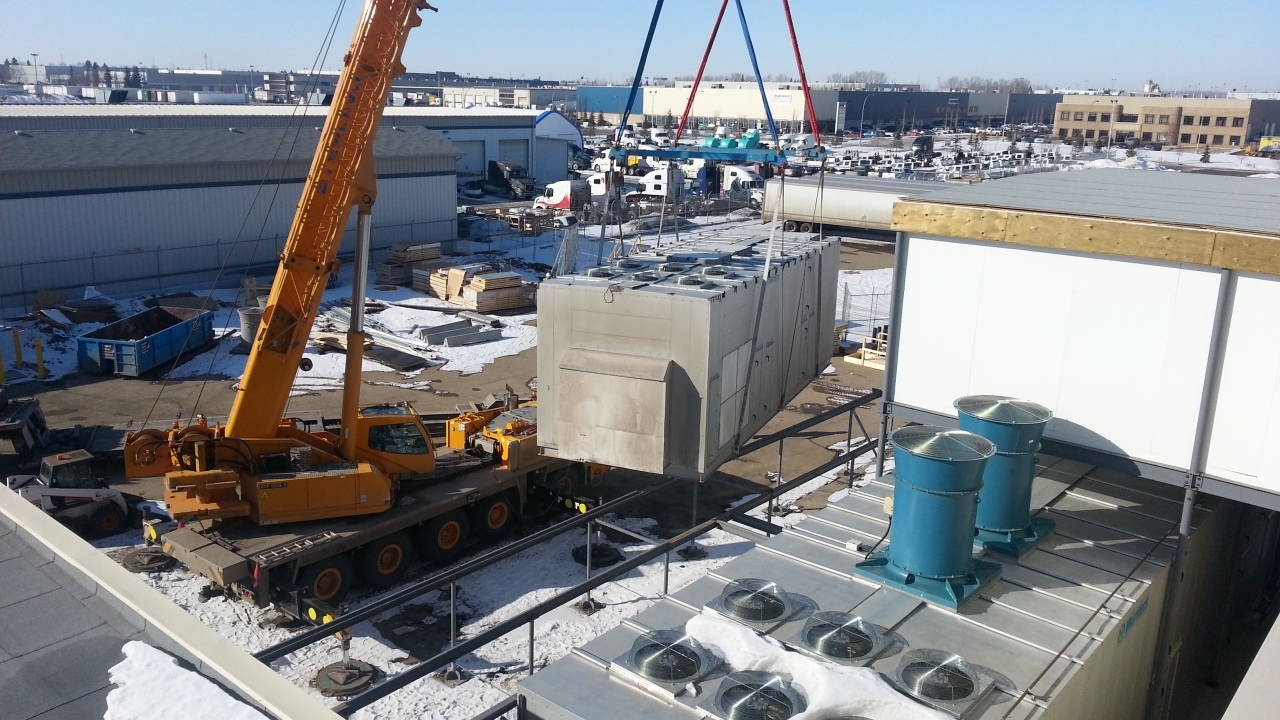

Fluid Cooler crane lift

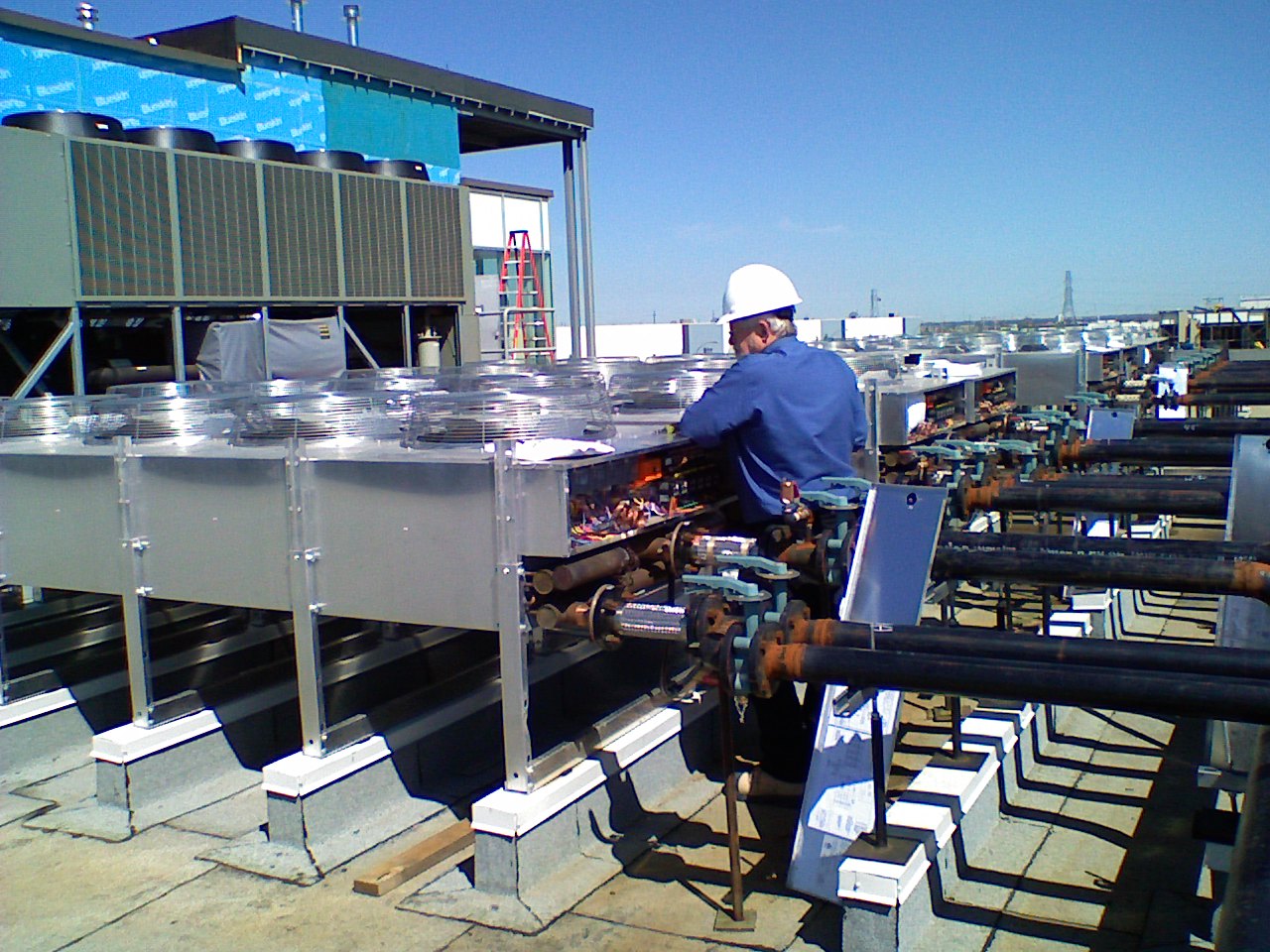

Fluid Cooler Fan Farm complete

Cooling loops and floor completion

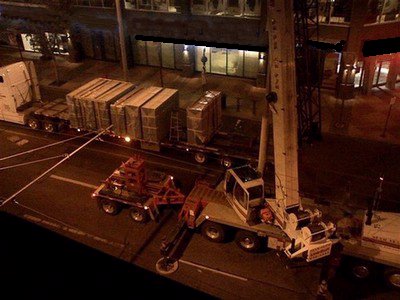

CRAC unit crane lift

Rack delivery

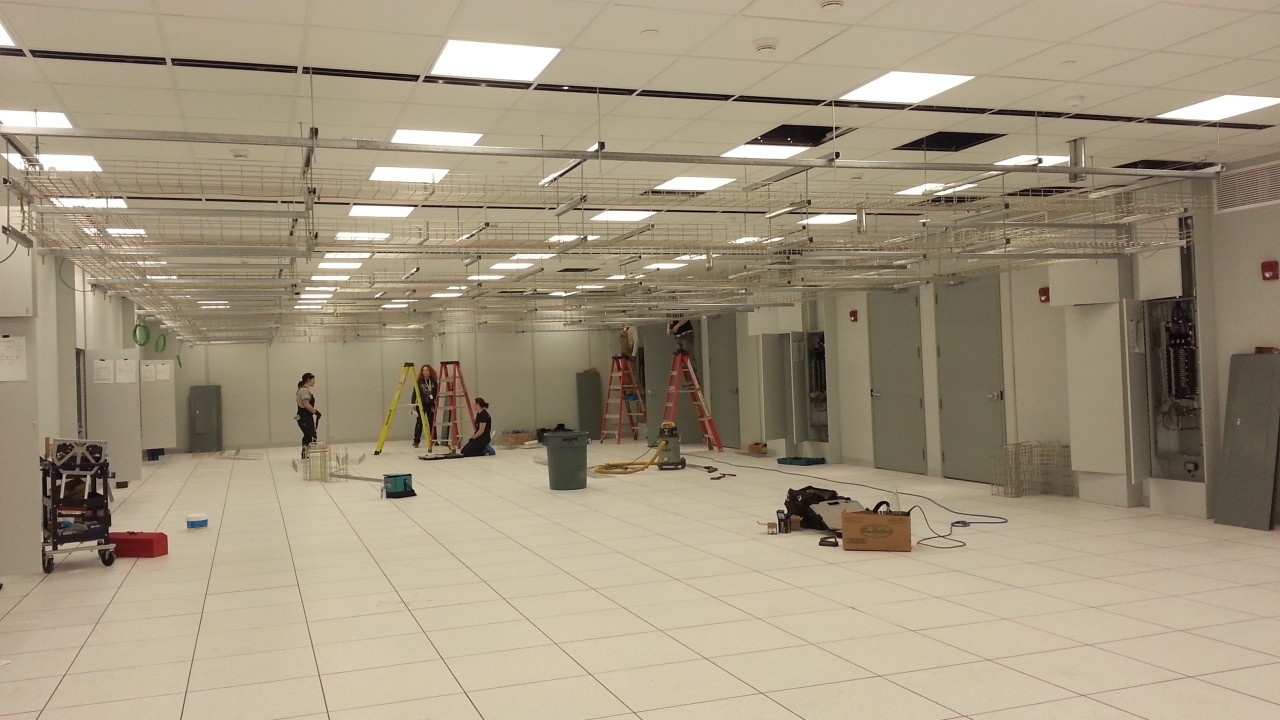

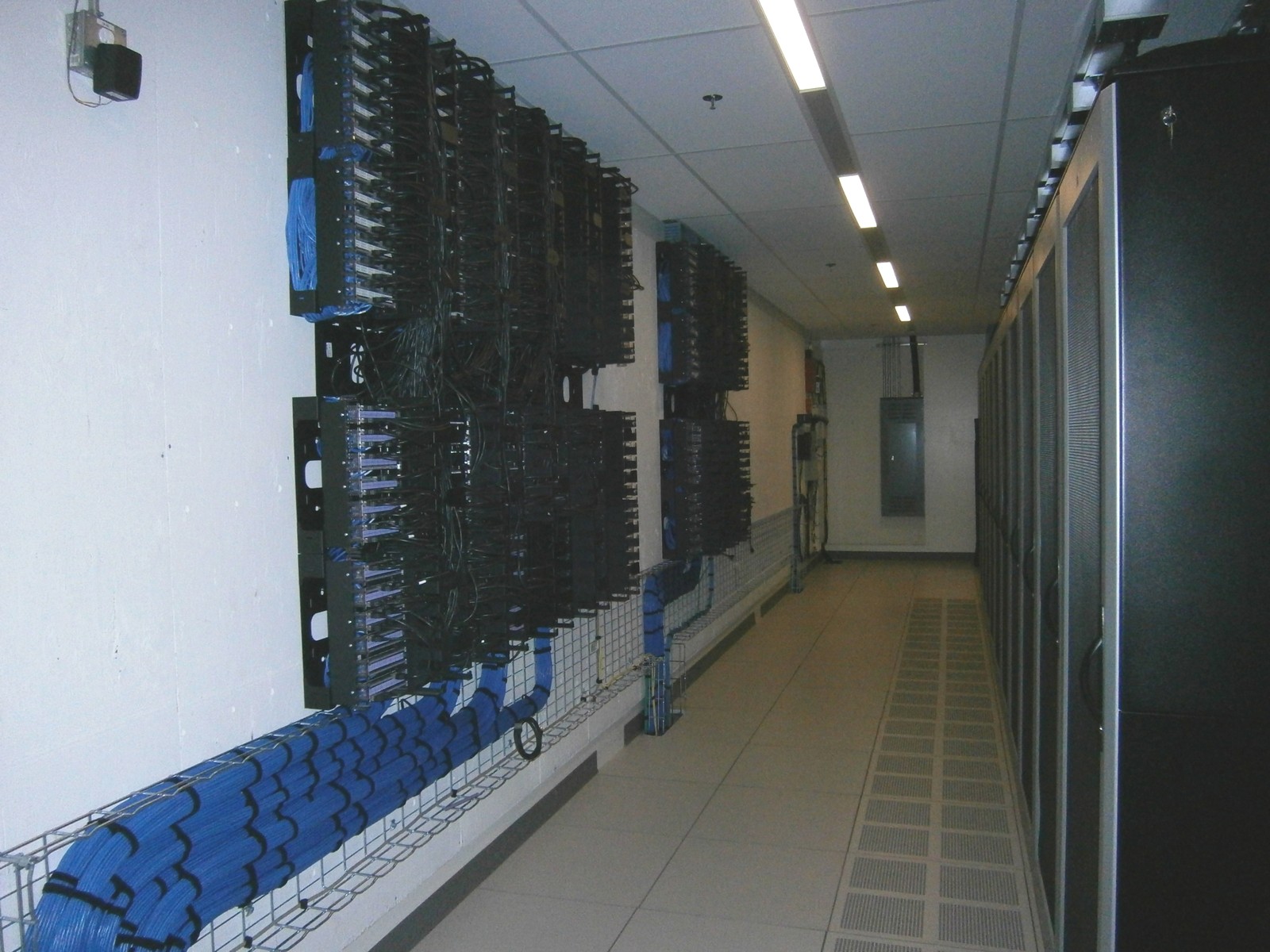

Network installation

Cooling system commissioning

Cooling loops under the floor

Static Pressure measurement during commissioning

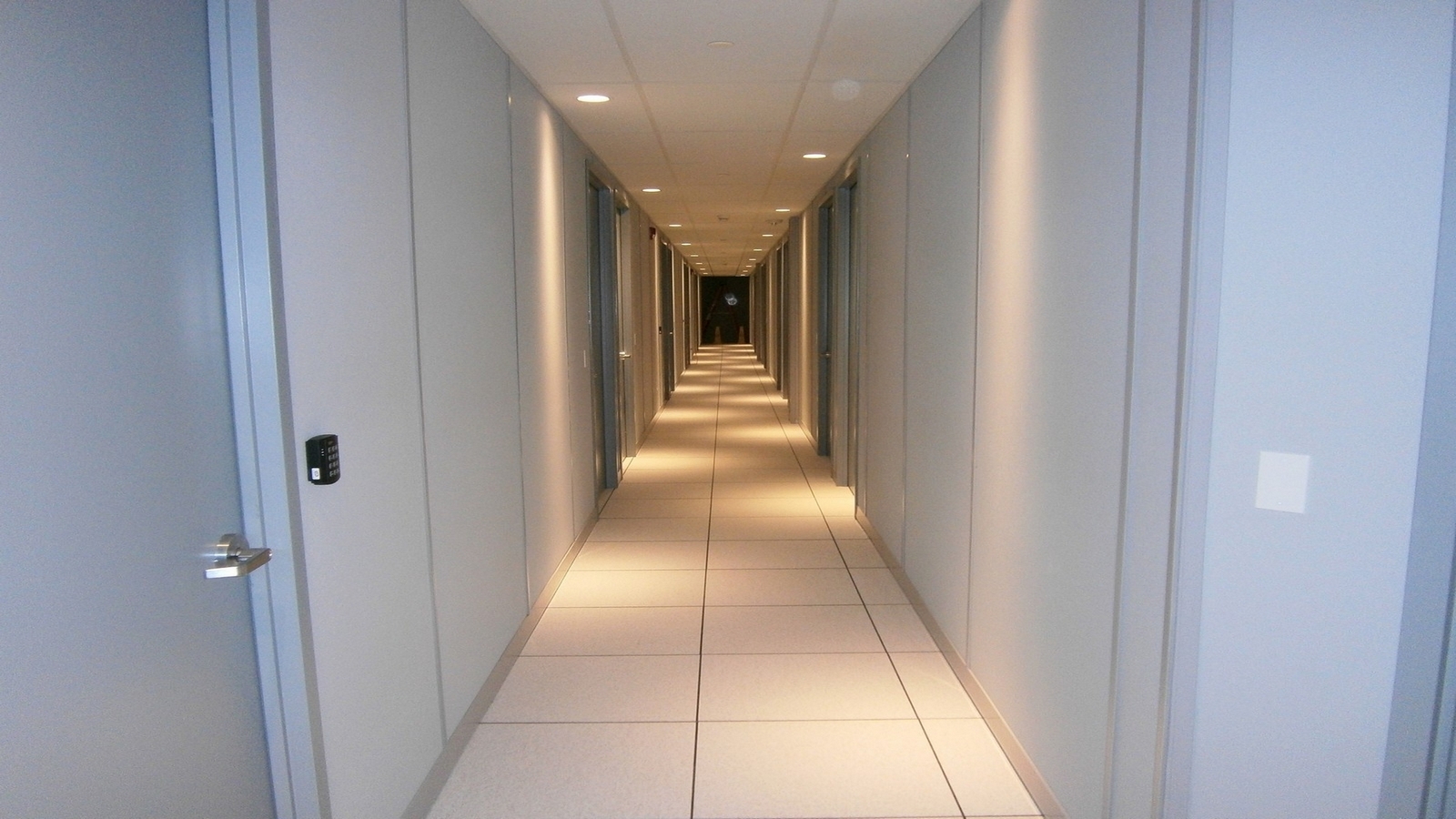

Completed Lobby, Stairs and Hydraulic Equipment Lift (right)

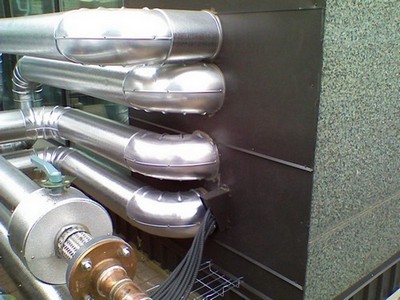

Cooling Loop building exit, insulation and control valves

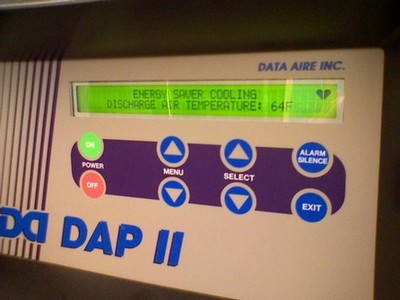

Running on Energy Saver cooling - no compressors run below 10 degrees C.

Server Data Centre - Banking

Floor Plan

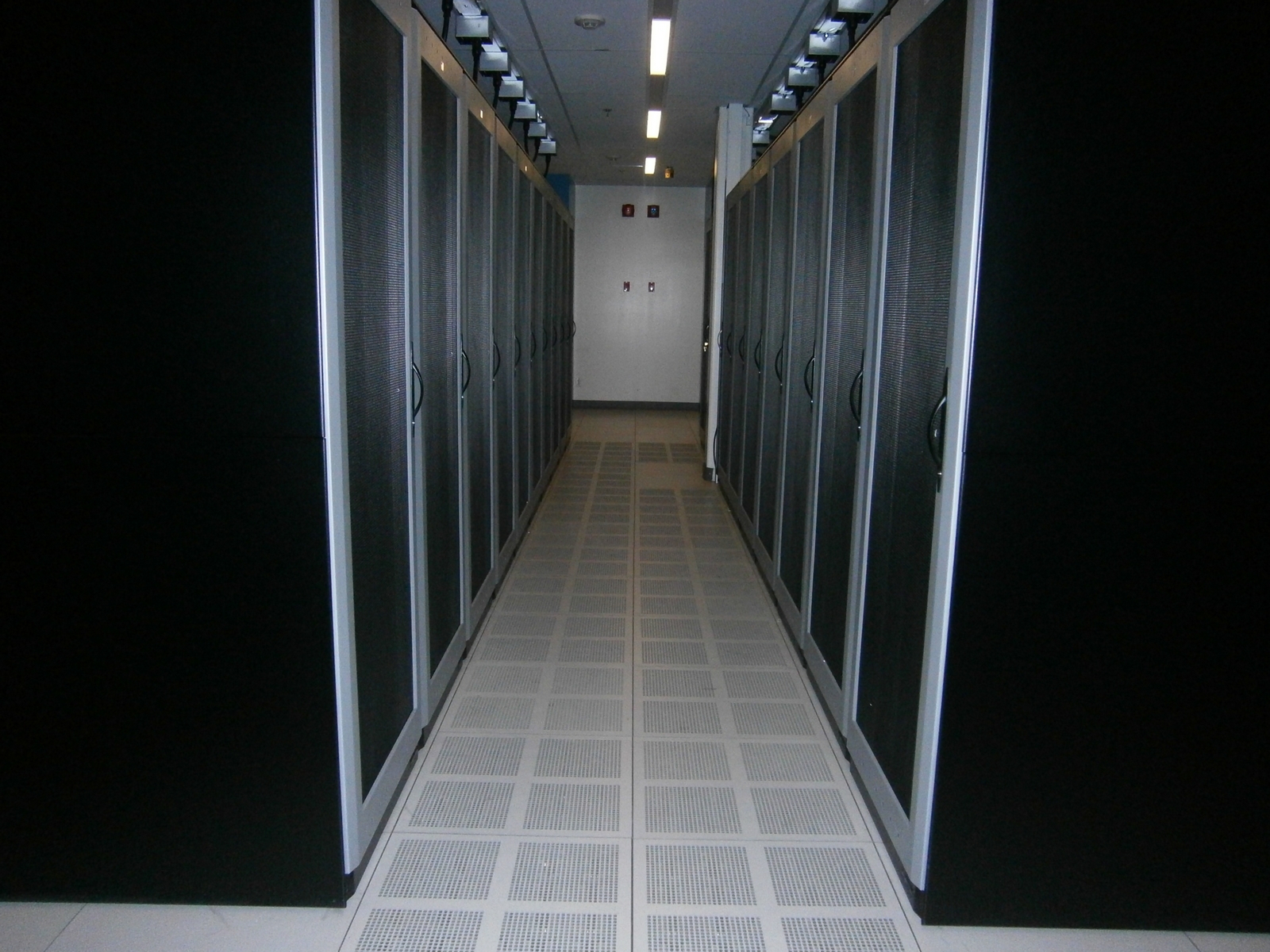

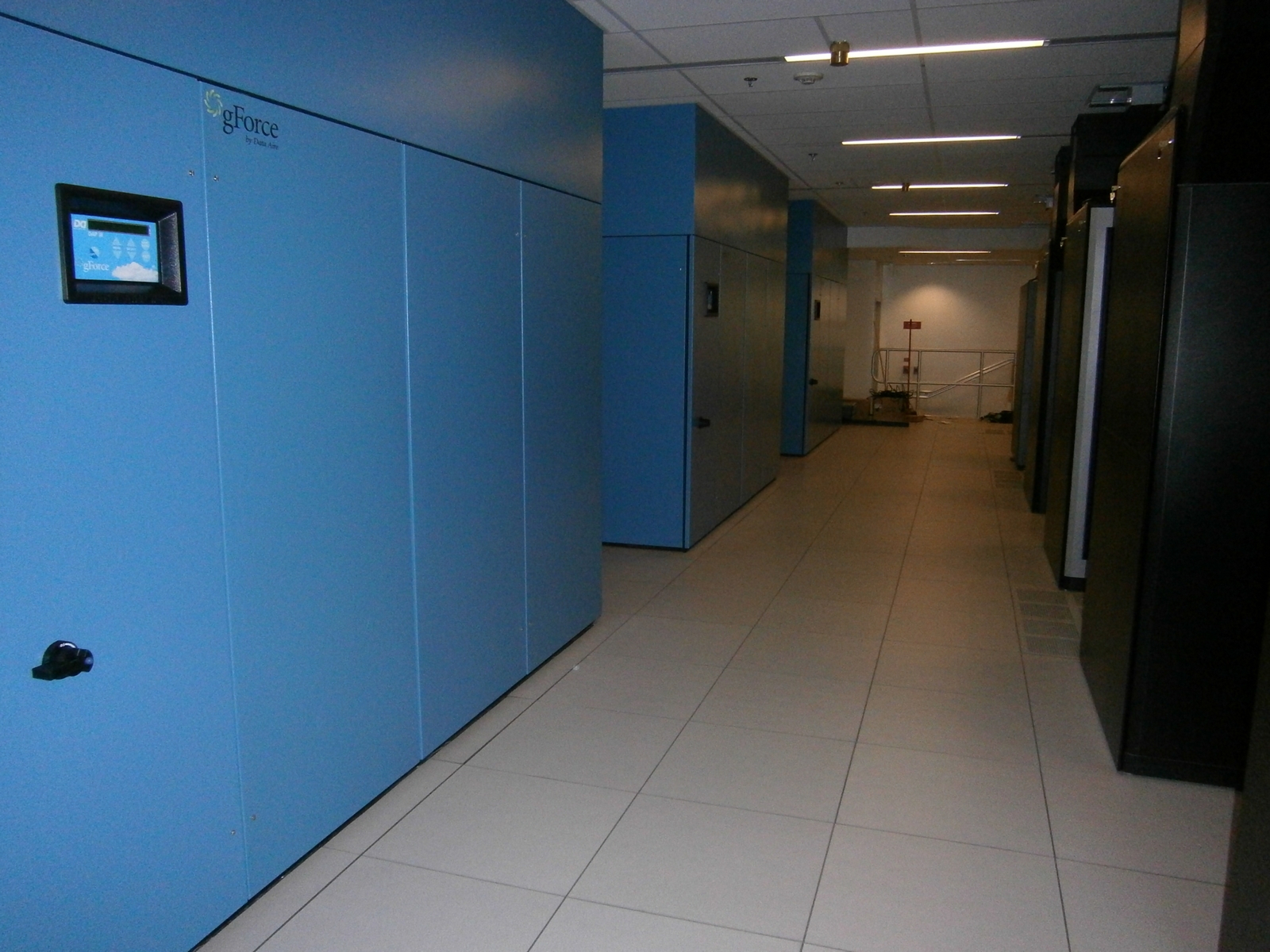

Computer Room

UPS Room

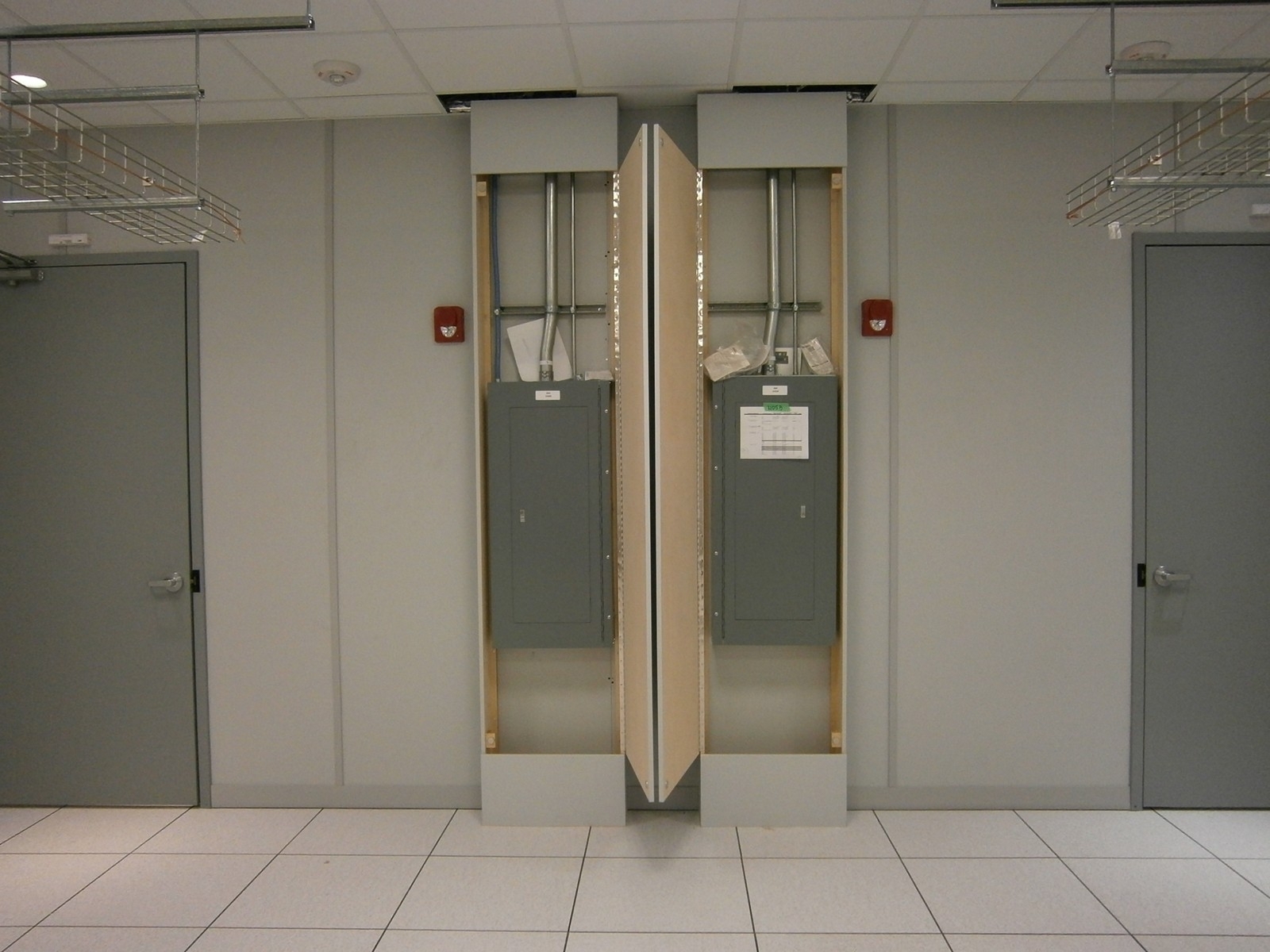

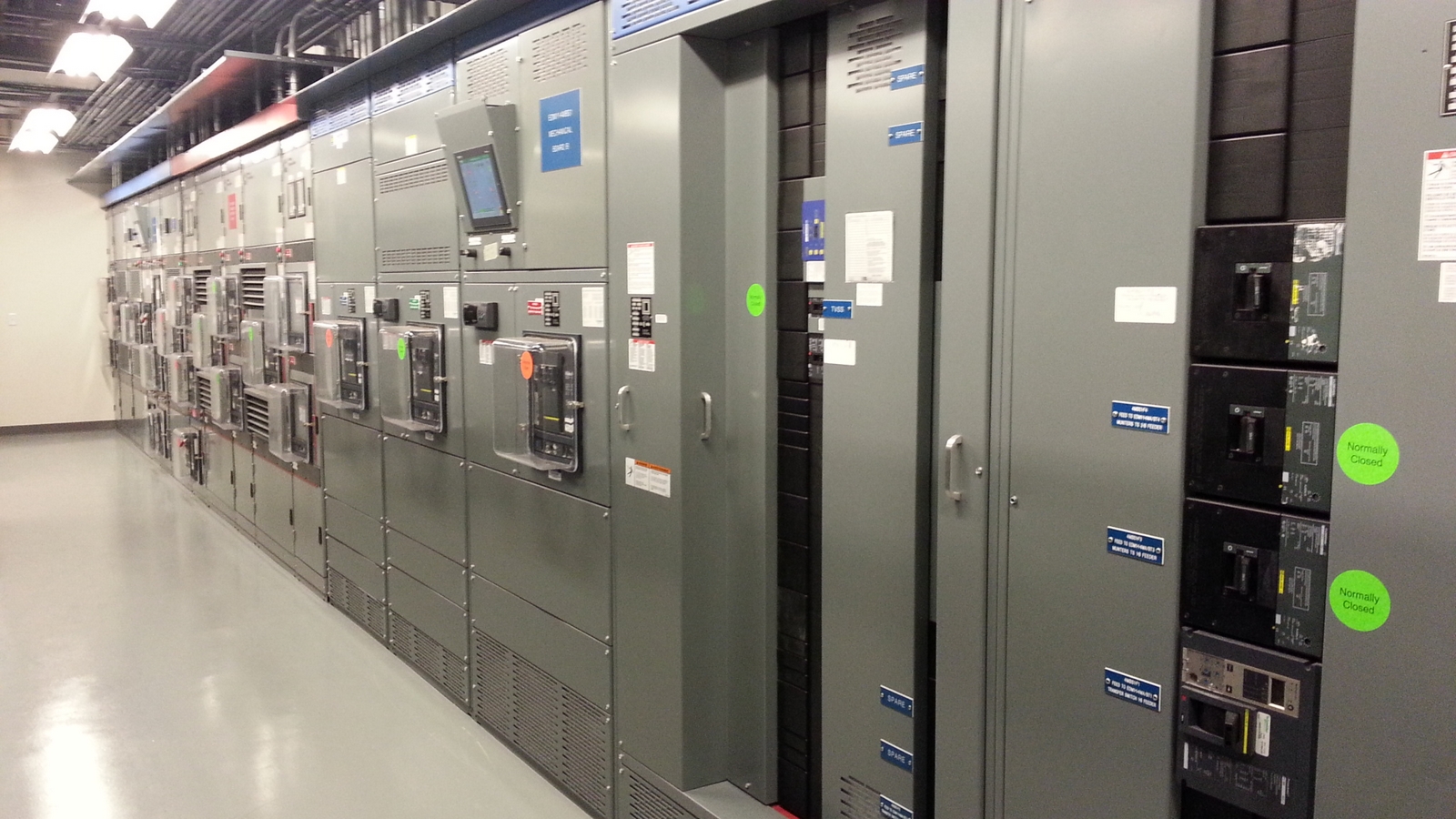

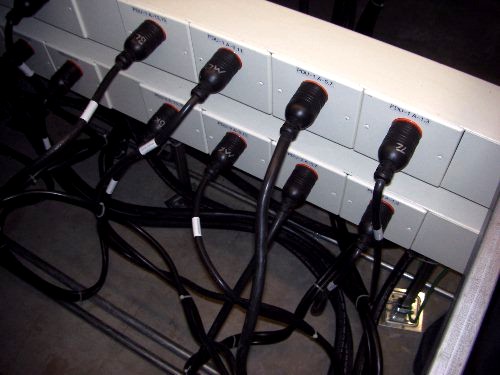

Electrical Install

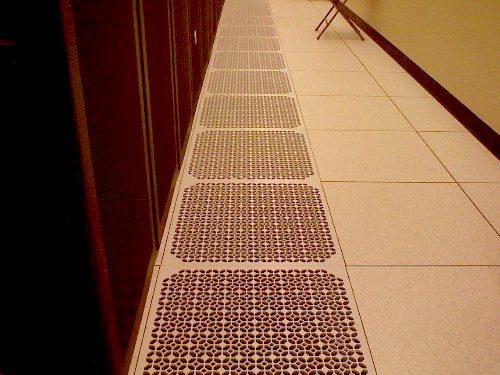

High flow GrateAire perf tiles for combination Blade/Rackmount server racks

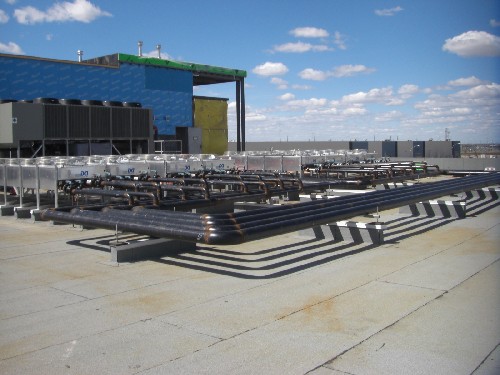

Data Aire Free Cooling System Fluid Coolers
